Product Model: HMI2004-BMS ( DIN-Rail Mount)
Function Description：
HMI2004-BMS, integrates all functions of web configuration gateway HMI2004-ARM and BMS Gateway MMG2004-A9. In addition to realizing remote monitoring of configuration images, cameras supporting GB/T 28181 and RTSP protocol standards (Hikvision, Dahua, Yushi, etc.) can be converted into HTTP protocol to facilitate the gateway to integrate cameras and open them to third-party platforms. You can access the real-time picture of the camera by HMI2004-BMS.
Runtime environment：
OS：Win 7, Win8, Win10, Win11, Win Server 2008, Win Server 2016, and more.
Browser： Google Chrome, Microsoft Edge, Apple's Safari, Firefox, Opera, and 360 Speed Mode.
Register Type:
Note: The number of register points is dynamically supported, with a total limit of up to 2048 points.
The BACnet/Modbus register types and maximum number of points supported are shown in the table below.
Software Features：
- Support convert GB/T 28181 or RTSP Standrad protocol Camera to http;
- Support transfer to BACnet server 、Modbus server 、OPC XML-DA、 OPC UA server、MQTT server;
- Support WeChat,,DingTalk,Email,Telegram,Viber,WhatsApp Alarm etc.;
- Support JS script and PLC editing to realize logical control;
- Support user group management, configuration screen monitoring can set permissions;
- Support various forms of timing and event triggering, and provides custom functions for the convenience of extending the application;
- Support remote accessing and monitoring. user can be easily achieved through mobile phone, iPad and PC on LAN;
- New Protocol can be completed in 2 weeks.

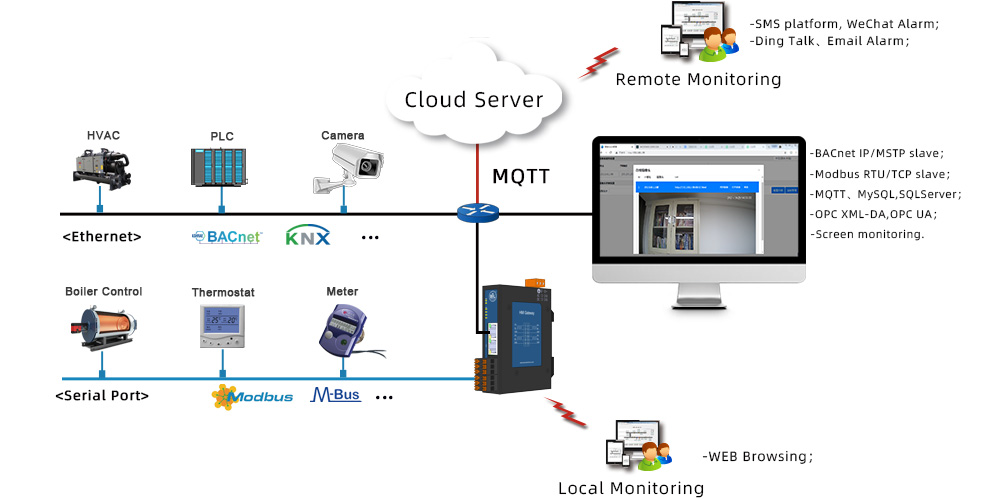

Application Principle Diagram
Product Size
